Product Details

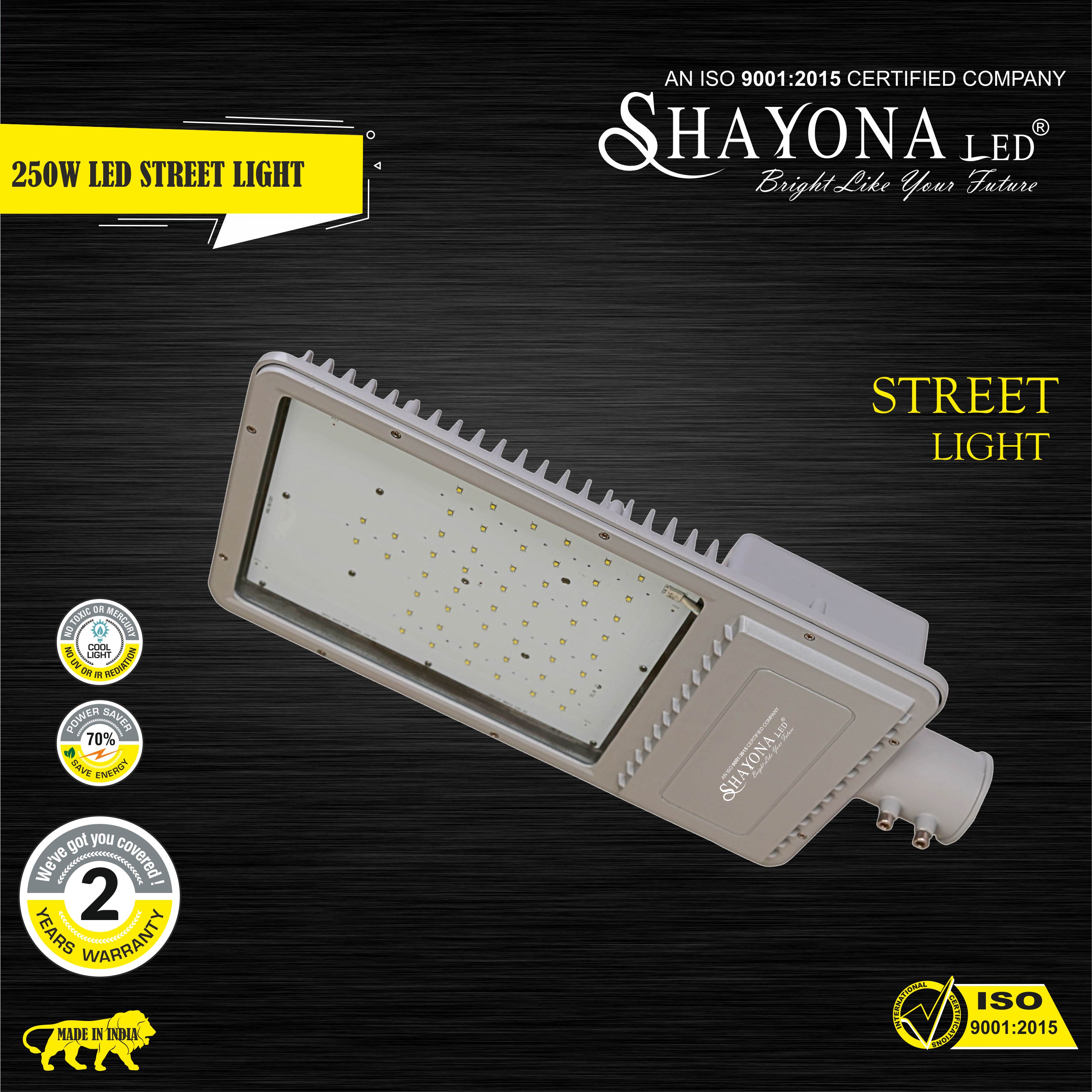

250W LED Street Light Frame Model

  • Certification CE, RoHS, BIS, LM79 or LM80
  • Wattage 45-60W
  • Dimention 215 x 205 x 60 mm
  • Weight 1.33 Kilograms
  • LED Brands Bridgelux/Cree/Osram (As per Requirements)
  • Power Consuption 45-60W
  • LED Lumens Efficiency 140 Lumens/Watt
  • Maximum Lumens 6300-8400 lm
  • Beam Angle 120 Degree
  • Input Voltage 85 - 300 VAC (Auto cut off above 310V) (Protection up to 440V)
  • Operating Frequency 50/60 Hz
  • Power Factor >0.95
  • Operation Temperature -20° to 50° Celcius
  • CRI 80
  • Efficiency >88%
  • Colour White/Warm White (As per Requirements)
  • Colour Temperature 2700-6500K (As per Order)
  • Body Type Aluminum pressure die cast
  • IP Rating IP65/IP66
  • Working Hours >50,000 Hours

Additional Information

  • Surge Protection:

    Inbuilt Driver surge protection - 6 KV
    Inbuilt SPD surge protection - 10 KV

  • LED PCB Details:

    Thickness 1.6 mm (±5% tolerance)
    PCB material - Aluminum-copper
    Copper layer thickness - Standard 0.35 micron
    Copper conductivity - 1 Watt

  • Additional Features:

    - Plug & Play Device
    - Corrosion free Body Material, Dust proof, Rugged
    - Easy to Install, Easy to maintain
    - Suitable in any Environmental Condition
    - Save Up to 70% of Electricity

  • Terminology:

    Earth - Green
    Line Positive - Red
    Neutral - Black
